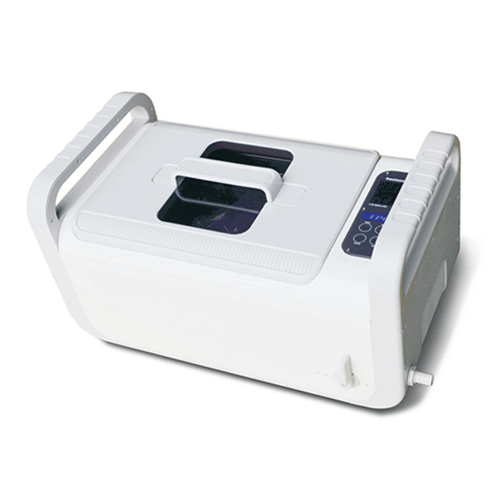

Ultrasonic Cleaner Dentsonic UC 750

Warning: there should be NO metal-metal contact inside the tank during ultrasonic cycle. This includes NO direct loose instrument-to-instrument, cassette-to-tank, cassette-to-cassette, cassette-to-basket metal contact. Make sure cassettes have standard silicone insulations and feet if no basket is used. Tank dimensions are measured without baskets. Basket sizes vary depending on unit.

Use tap water. Special solutions are not necessary in most cases.
Principles of ultrasonic cleaning:
Millions of tiny air bubbles are generated within the liquid by high-frequency vibration.
The air bubbles burst when in contact with objects and dislodge the debris to achieve the cleaning effect.

Main Features

• Tank opening 33.lx23.5 cm/ 13.0"x9.4"x4.1". Longest item that can fit inside the tank is 37.0 cm/ 14.6". 7.5 L / 2.0 gallon tank capacity.
• Multiple options for accessories, suitable for various applications.
• 3 industrial grade ultrasonic transducers: 3x(55~60)W=(165~180)W, 3 ceramic heaters: 3x(75~80)W=(225~240)W.
• 3-color LED display, 4-key controls, 6 timer settings, 3 temperature settings, simple and straightforward to operate.
• Control panel with capacitive sensing technology, Durable, reliable, resistant to water and harsh chemicals
• Electrical circuit features:
  1. Three transducers, each have an independent PCB control. The output power is increased by 40% compared to the less expensive control method that uses one PCB to control multiple transducers.
  2. Multiple circuit protectors: a. Thermal switch to prevent running dry. If the temperature is too high, the switch cuts off power for approximately 6 minutes then reconnects the power.
• Thermal protector to prevent PCB from overheating due to overload.
• Timer to prevent the heater from running continuously. Industrial grade IC. Moisture-proofed PCB. Cooling fan.
• Drainage valve.



Description	TPC Ultrasonic Cleaner
Model	UC 750
Tank Capacity	7.5 L/ 2.0 gallon (US)	Max. 6.0 L/ 1.6 gallon (US)
		Min. 4.3 L / 1.1 gallon (US)
Tank Size	33.lx23.8x10.5 cm/ 13.0"x9.4"x4.1"
Longest Item Fits inside Tank	37. 0 cm I 14.4"
Power Supply	380W ( AC 100~120V 60Hz)
	410W (AC 220~240V 50Hz)
	310W (AC 100V 50/60Hz)
Digital Timer Settings	>10min l5min 20min 25min30minSmin
Drainage	Drainage valve
Ultrasonic Frequency	35,000 Hz
Tank Material	Stainless Steel SUS304
Housing Material	ABS
Net Weight	9.8 kg/ 21.8 lb
Gross Weight	11.1 kg/ 24.7 lb
Unit Size	54.lx33.7x27.7 cm/ 21.3"x13.3"xl0.9"
Inner Carton Size	60.0x38.0x33.5 cm/ 23.6"xl5.0"x13.2"
Qty per Master Carton	1 pc/ ctn
Master Carton Size	62.5x41.0x37.0 cm/ 24.6"x16.l"x14.6"
